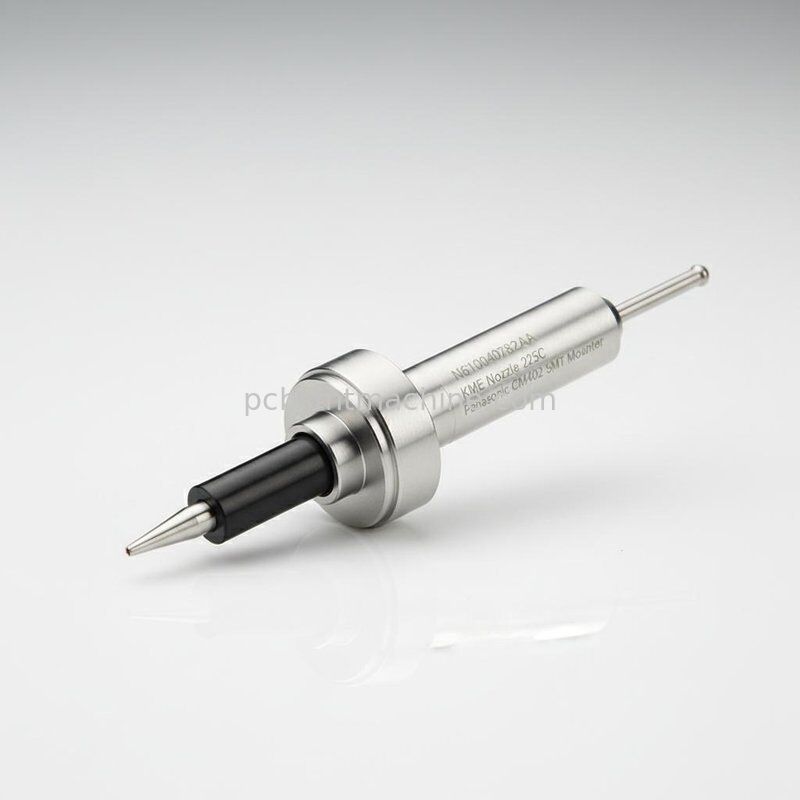

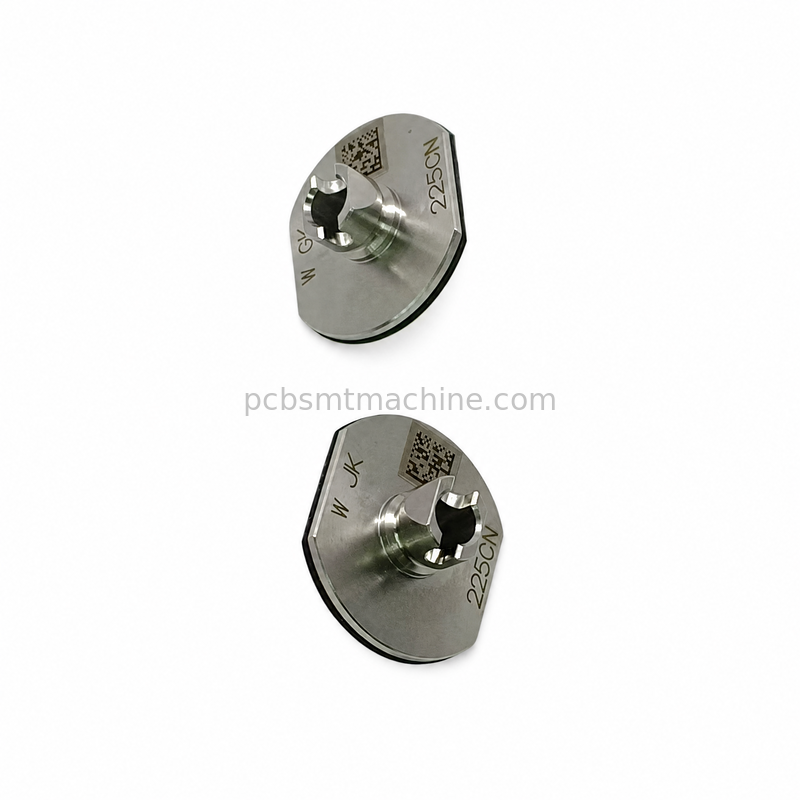

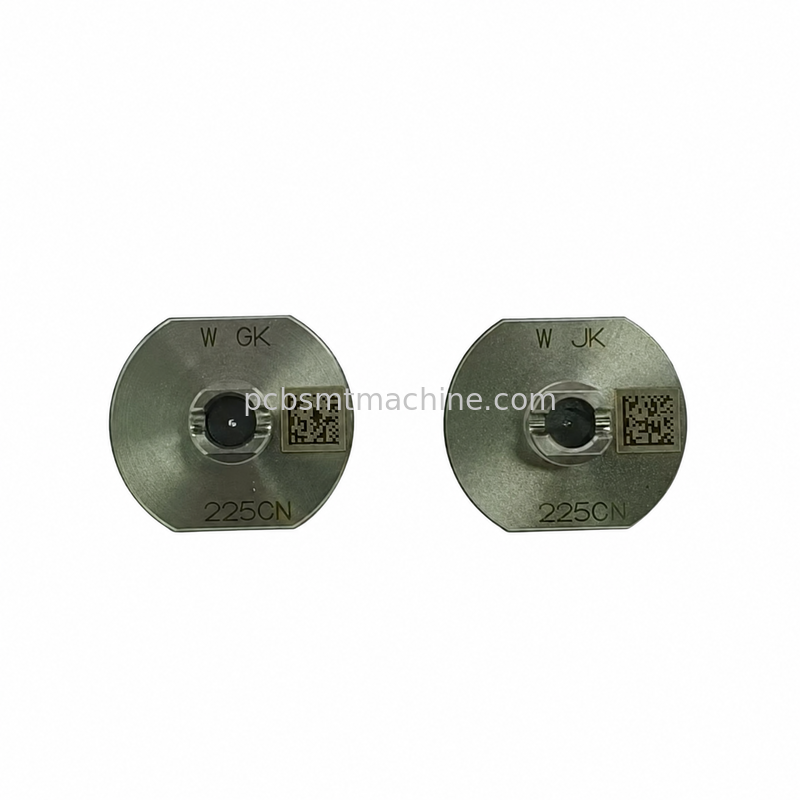

N610040782AA KME Nozzle 225C - Original Style Nozzle for Panasonic CM402 SMT Mounter

 KME Nozzle 225C (Part Number: N610040782AA) is a high-precision compatible nozzle for Panasonic CM402 series SMT mounters, designed for high-speed and high-stability SMT production lines. The inner hole is polished by imported precision equipment to ensure micron-level concentricity and smooth surface. The main body is made of imported alloy steel with heat treatment, featuring great wear resistance, no deformation and no discoloration on the head after long-term use.

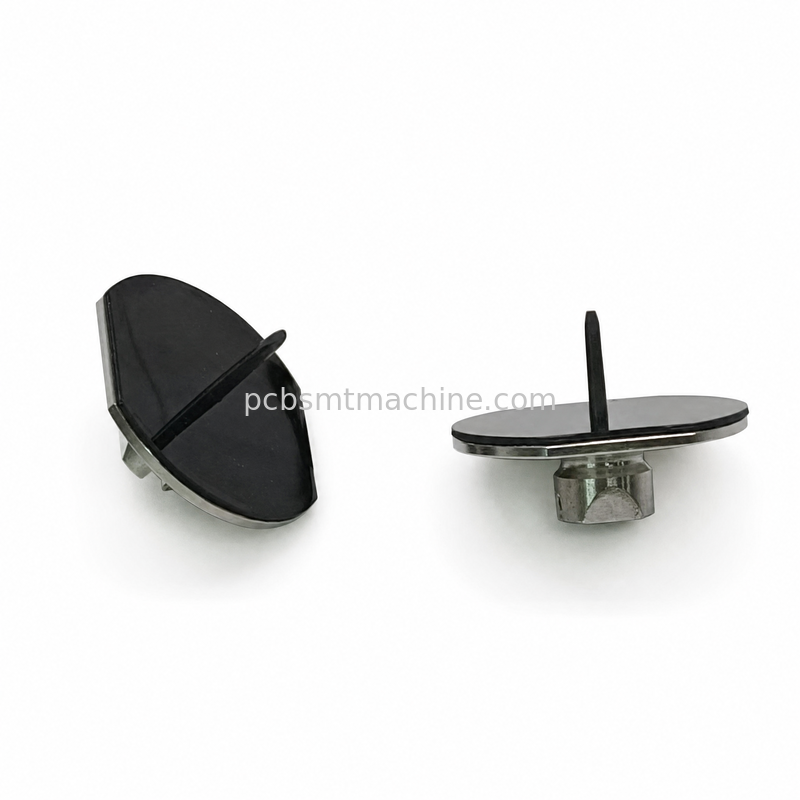

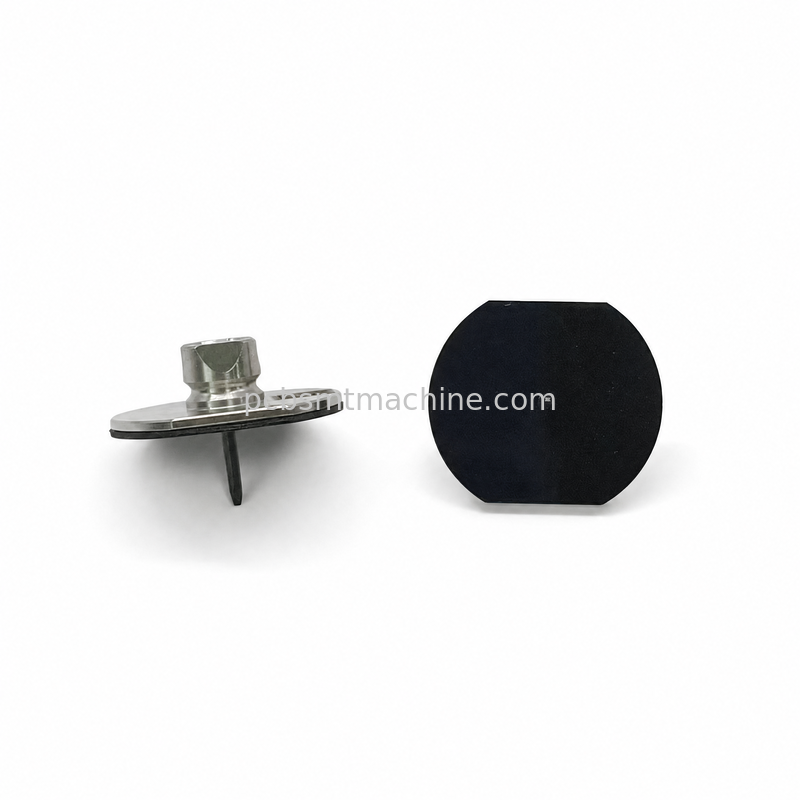

The reflector is coated with the same optical material as original parts with fully matched reflectivity. It can be directly interchanged with original nozzles without extra calibration, and will not affect mounting accuracy. It is suitable for picking and precision mounting of standard chip components such as 0603 and 1608, serving as a long-life and cost-effective replacement part for CM402 production lines.

1. Precision Manufacturing Process

Inner hole: One-piece forming by imported precision grinding equipment. Smooth inner wall without burrs, reducing adsorption resistance and static electricity.

Main body: Adopts imported alloy steel and vacuum heat treatment. Hardness reaches HRC 58-62, wear-resistant and impact-resistant, no deformation during long-time high-speed operation.

Nozzle head: Adopts special anti-discoloration coating, avoiding yellowing and whitening, keeping stable appearance and performance.

2. Original Grade Quality & Interchangeability

The optical performance of the reflector is 100% consistent with original parts to guarantee accurate component recognition. It can be directly replaced with original nozzles without additional commissioning.

All products are fully inspected before delivery, including optical test and vacuum adsorption test, to ensure no cracks, deformation and uniform suction.

3. Compatibility & Production Line Value

Optimized exclusively for Panasonic CM402 high-speed mounter. Perfect for mainstream components like 0603 and 1005, featuring stable mounting and low component drop rate.

Long service life design reduces downtime for part replacement, cuts maintenance costs and improves overall equipment effectiveness (OEE).

4. Total Solution & Cooperation Service

One-stop supply for full series CM402 nozzles: 110, 120, 130, 225C, 235C and more models.

Support bulk order, OEM service and long-term supply contract with stable price and fast lead time.

Provide professional training on nozzle usage and maintenance to extend service life and reduce consumption.
